Description
Product details

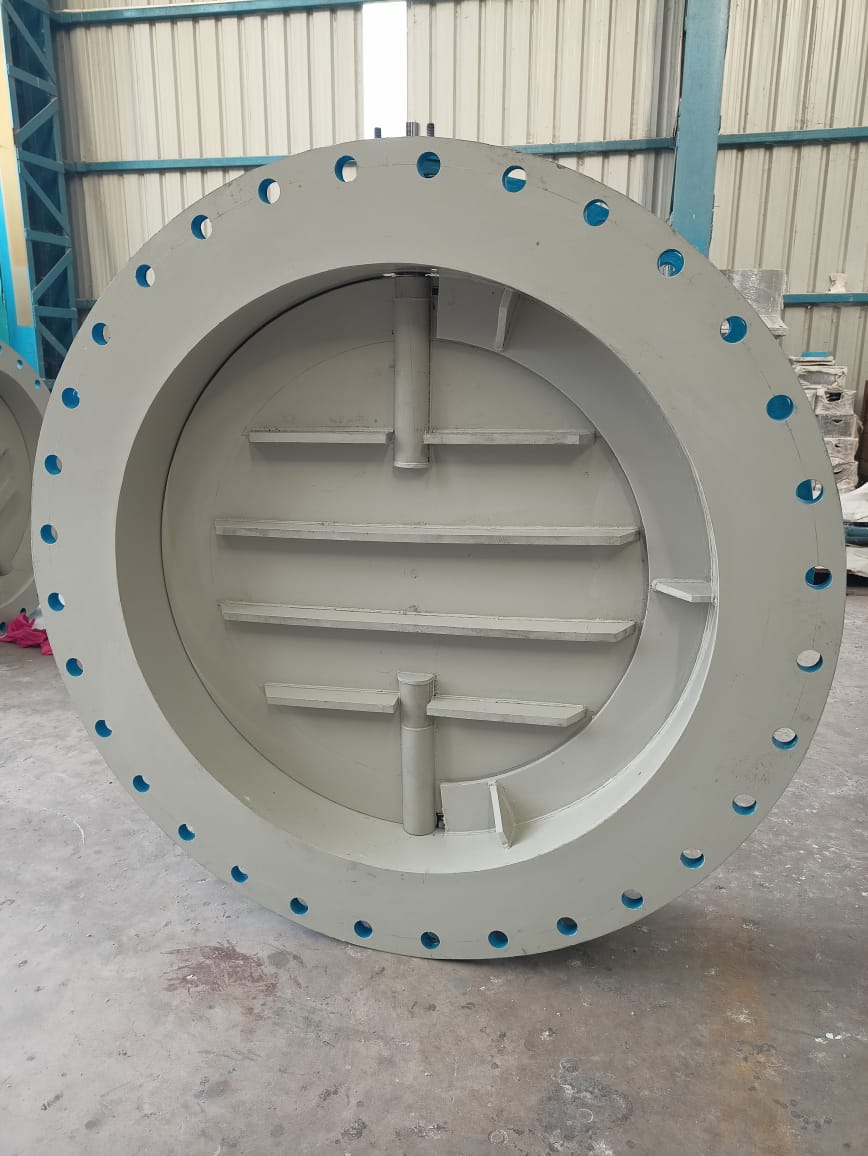

We are leading manufacturers of FRP, PPH/FRP, PVC/FRP, PVDF/FRP, ECTFE/FRP, FEP/FRP Butterfly valves. Technical Specifications Technical Specifications of FRP Butterfly Valve Size Range Pressure Range Class 150, PN10, PN16, AS”D””E”, JIS10K NPS 2”-48” or DN50-DN1200 Design Feature Absolutely tight sealing with flow in either direction. Body and disc are machined to reduce operating torque. Small in size and light in weight. Easy installation and maintenance. Bubbles-tight sealing with no leakage under the pressure testing. It can be installed in any direction. Body Material FRP with VINYL ESTER RESIN, With or Without Fire Resistant Disc Material FRP with VINYL ESTER RESIN, PPH, Seat Material NR, NBR, EPDM, FKM/Viton, PTFE Applicable Standards ASME RTP-1, ASTM Operation Handle, Gear, Pneumatic/Electric Actuator Applications Offshore, water and waste water, Ship building, Power plant, Chlor Alkali Plant, Oil and Gas, Range 4 Inch upto 120 Inch Diameter Likage Class I, II, III, IV, V, VI Shaft AISI316
